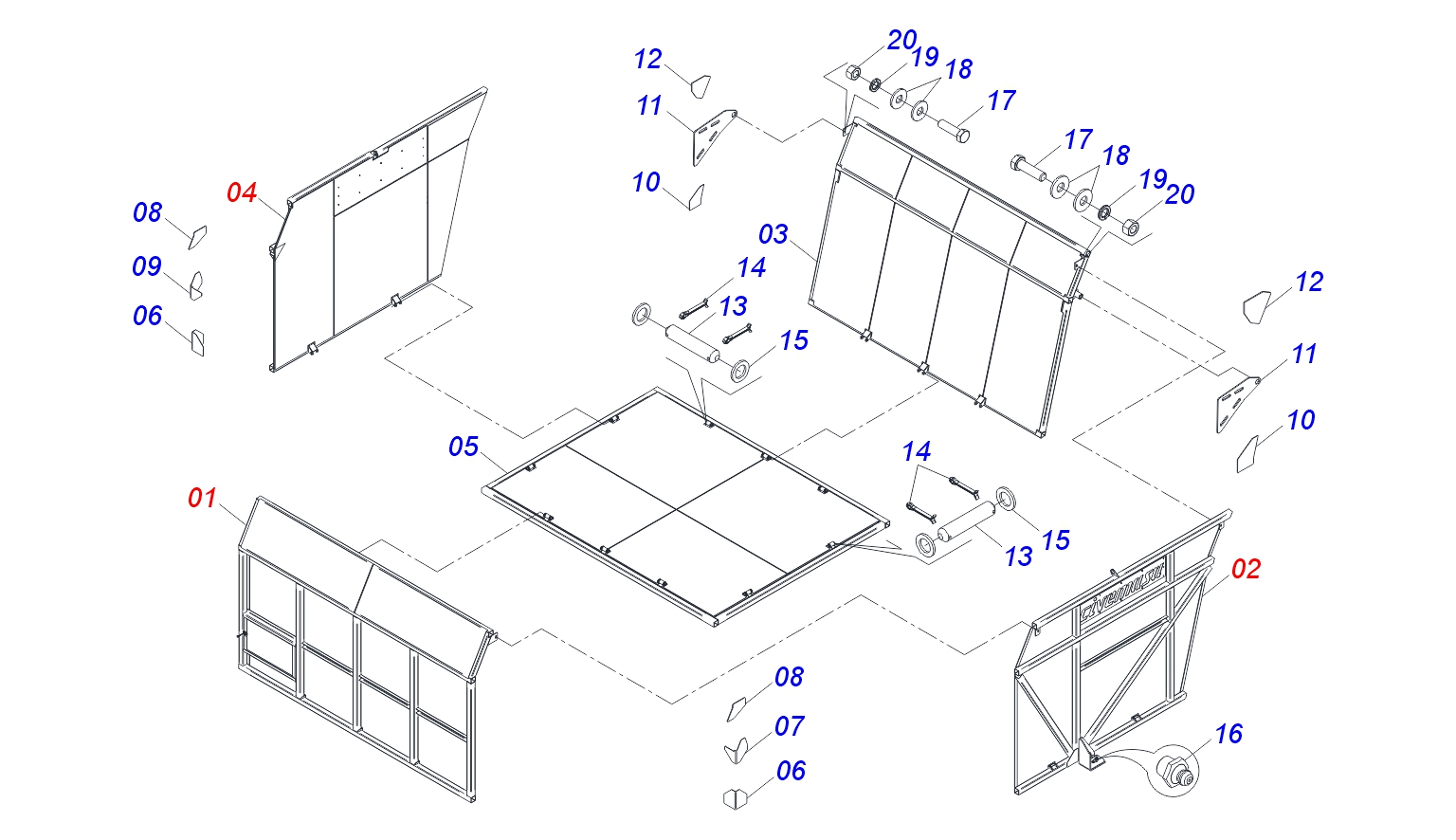

SKEP ASSY
| ITEM | CODE | DESCRIPTION | QT |
|---|---|---|---|
| 01 | 0541055419 | SIDE SEMI MOUNTED BASKET | 01 |
| 02 | 0541055433 | FRONT SEMI MOUNTED SKEP | 01 |
| 03 | 0521065238 | BASKET SLIDE WITH PLATE | 01 |
| 04 | 0541055434 | REAR SKEP SEMI MOUNTED | 01 |
| 05 | 0521065236 | BASKET BACKGROUND WITH EXPANDED PLATE | 01 |
| 06 | 0571017197 | BIGGEST PLATE JUNCTION | 02 |
| 07 | 0561016669 | FRONT PLATE | 01 |
| 08 | 0561016667 | UPPER PLATE | 02 |
| 09 | 0561016668 | REAR PLATE | 01 |
| 10 | 0571017184 | PARTS BASKET | 02 |
| 11 | 0571017180 | EXTERNAL EAR ARTICULATED | 02 |
| 12 | 0561014353 | LEFT SUPPORT PLATE | 02 |
| 13 | 0571017194 | AXIS 25 X 125 | 10 |
| 14 | 0503010131 | 3/16" X 1.1/2" SPLIT PIN | 20 |
| 15 | 0571017193 | FLAT WASHER | 20 |
| 16 | 0503010002 | GREASE FITTING 1800 | 02 |
| 17 | 0503011082 | C1/2" X 1.3/4" SCREW | 04 |
| 18 | 0511017302 | FLAT WASHER 13.50 X 32.50 X 3.0 ZN | 08 |
| 19 | 0503010019 | SPRING WASHER 1/2" | 04 |
| 20 | 0503010060 | HEX NUT 1/2 UNC G.5 ZN | 04 |
