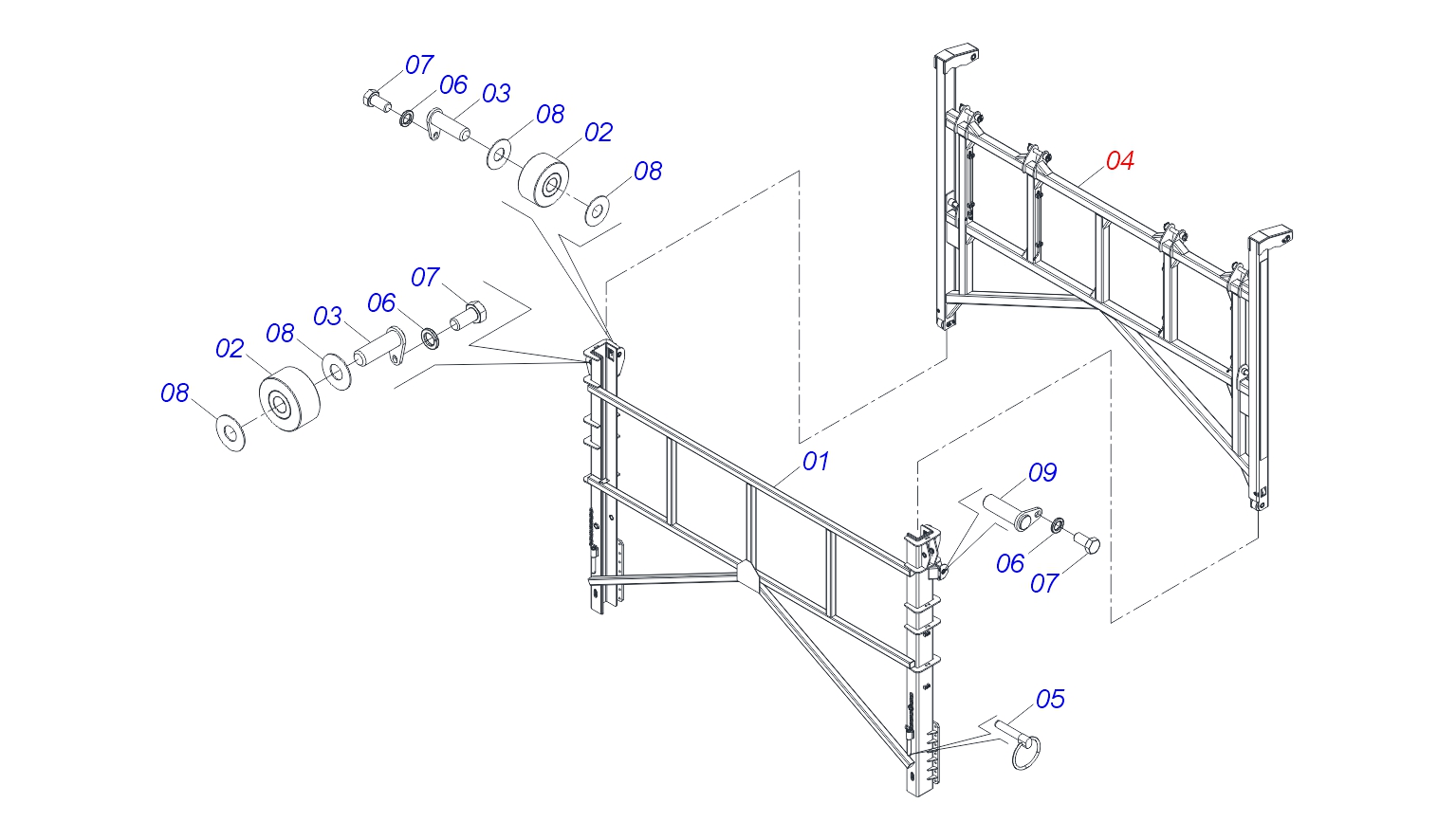

GUIDE FRAME WITH SEMI MOUNTED LIFTING - 0541055417
| ITEM | CODE | DESCRIPTION | QT |
|---|---|---|---|
| 01 | 0521067189 | GUIDE FRAME (176X4360) FLANGED | 01 |
| 02 | 0501110526 | LOWER PULLEY | 04 |
| 03 | 0511067985 | PIN UPPER PULLEY | 04 |
| 04 | 0511047914 | LIFT ASSY | 01 |
| 05 | 0503030430 | 7/16 X 2" PIN LOCK | 02 |
| 06 | 0503010019 | SPRING WASHER 1/2" | 06 |
| 07 | 0503010834 | 1/2 X 1 BOLT | 06 |
| 08 | 0551014871 | FLAT WASHER | 08 |
| 09 | 0521065778 | 1.25" X 4.09" SHAFT | 02 |
